تولیدکننده پرشر سوئیچ آب OEM W4 برای تصفیه کننده های خانگی و تجاری
Water pressure switch converta pressure signal to an ON/OFF electrical output.In response to a changein pressure, movement of an elastomeric Metal diaphragm opens or closes an electrical circuit based on a predetermined pressureset point.
این صفحه را به اشتراک بگذارید

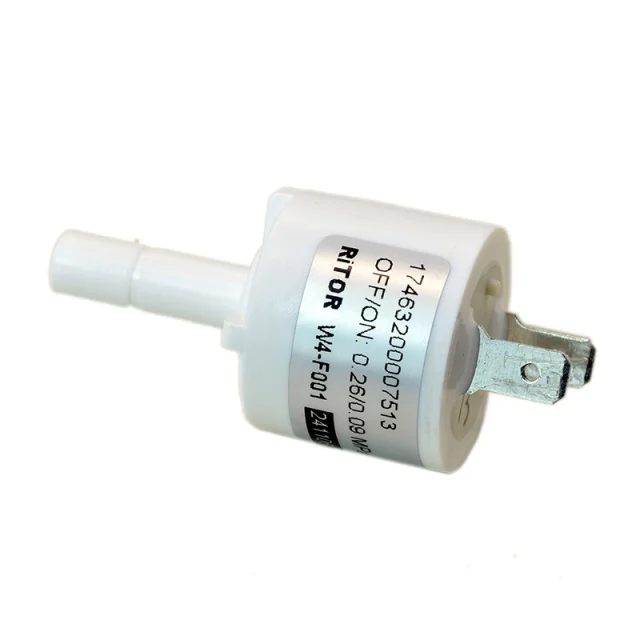

W4 Water Pressure Switch
Water pressure switch converta pressure signal to an ON/OFF electrical output.In response to a changein pressure, movement of an elastomeric Metal diaphragm opens or closes an electrical circuit based on a predetermined pressureset point.
The Series W4 Pressure switches provide superior performance and 50,000 cycle life under full mechanical, electrical and thermal loads.
through wide and variable temperature and humidity conditions, pressure rangefrom0.1Mpa、to 0.8Mpa.
مشخصات
| پایانهها | 4.8×0.5 mm;6.3×0.8mm |
| Contact Arrangement | SPST-NO |
| رتبهبندی برق | 5A@250VAC |
| Proof Pressure | 2.07 Mpa |
| Operating Temperature Range | 0℃ to +60℃ |
| Working Pressure Range | 0~0.8Mpa |
| Electrical life | 20,000 cycles |
| Medium | Non hazardous gas or liquid |
| اتصال | See technical data |
