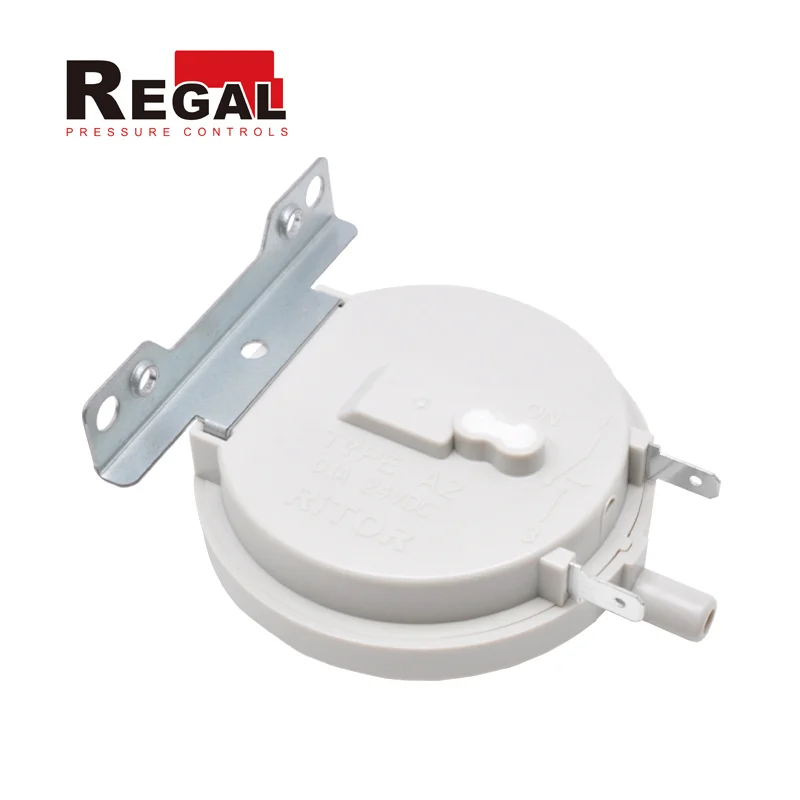

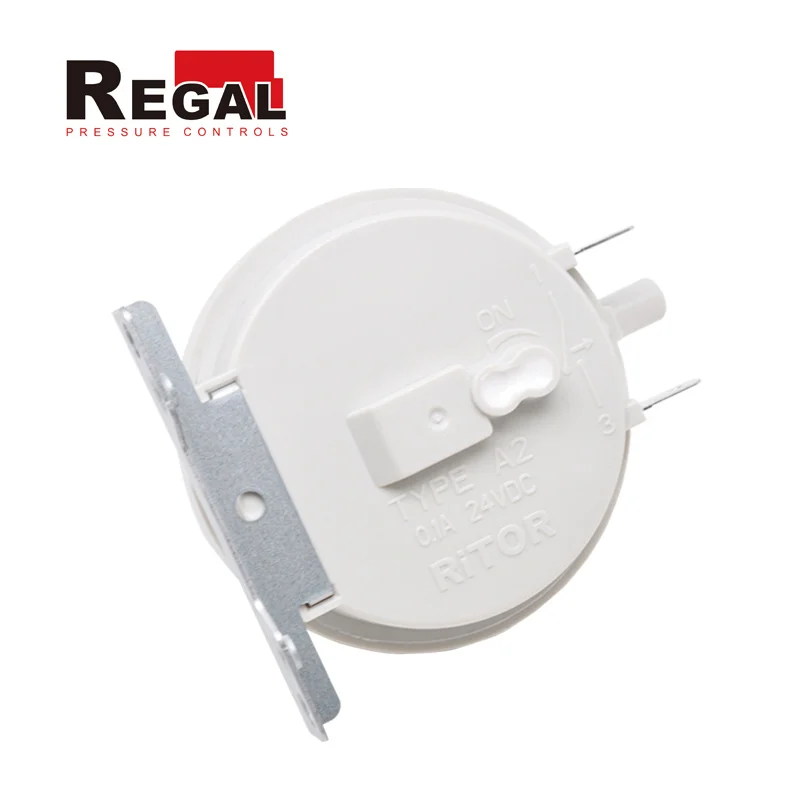

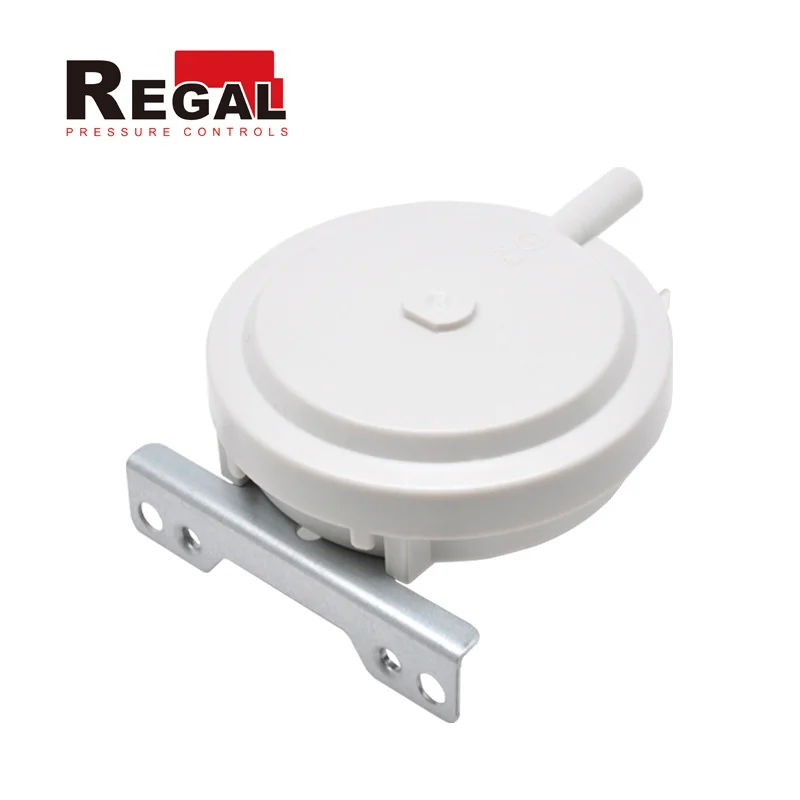

A2 Negative Pressure Switch 12 Volt 24VDC Single Port
A2 Pressure Switches,Gas water heater pressure switch
A2 is a negative pressure switch designed for the gas water heater with the latest patented technology, which can achieve good contact performance in a small space.
Negative Pressure Switch
The A2 pressure switch is an economical water heater air pressure switch product that adopts a classic and innovative shrapnel structure to achieve the characteristics of a small structure and large contact force, ensuring product contact reliability.
The A2 pressure switch has a compact structure and simple appearance. The cavity volume design allows sufficient air pressure changes to be efficiently converted into switch contact force.
The A2 series is a single port normally-open (NO) circuit negative pressure switch, which is a new design with new technology & affordable price. It has a good contact performance in such a small cavity.
A2 Air Pressure Switch Features
- It has a high accuracy for pressure testing and switching, which is ±3Pa.
- Simple and beautiful appearance, easy installation.
- Meanwhile, it has a wide operating temperature range from –40 to +110℃, so you can use it no matter in summer or winter.
- The set ON & OFF point can be customized, we can set the point according to your requirement in the production process.
- It is perfect for gas boilers and gas water heaters.
How the Gas Furnace Pressure Switch Works & Testing Video!
Negative Pressure Switch Specification
| Model Number | A2 Negative Air Pressure Switch |
| Working Medium | Air or Tail gas |
| Terminal Types | Standard 187 Quick Connect (4.8*0.5mm) |
| Tube Interface | 6.3 outer diameter which is suitable for the 5mm inner diameter tube |
| Circuit | SPST-NO |
| Rating | 0.1A 24VDC |
| Withstand Voltage | 3000Pa(0.5Psi) |
| Electrical Life | 25000000 cycles |
| Working Temperature | -40 to +110℃ |
| Accuracy | ±3Pa |
Apart from the negative pressure, we also can produce the positive pressure switch. For more product information, please go to visit our product page to check, we are a professional manufacturer supplier in pressure and flow control.
