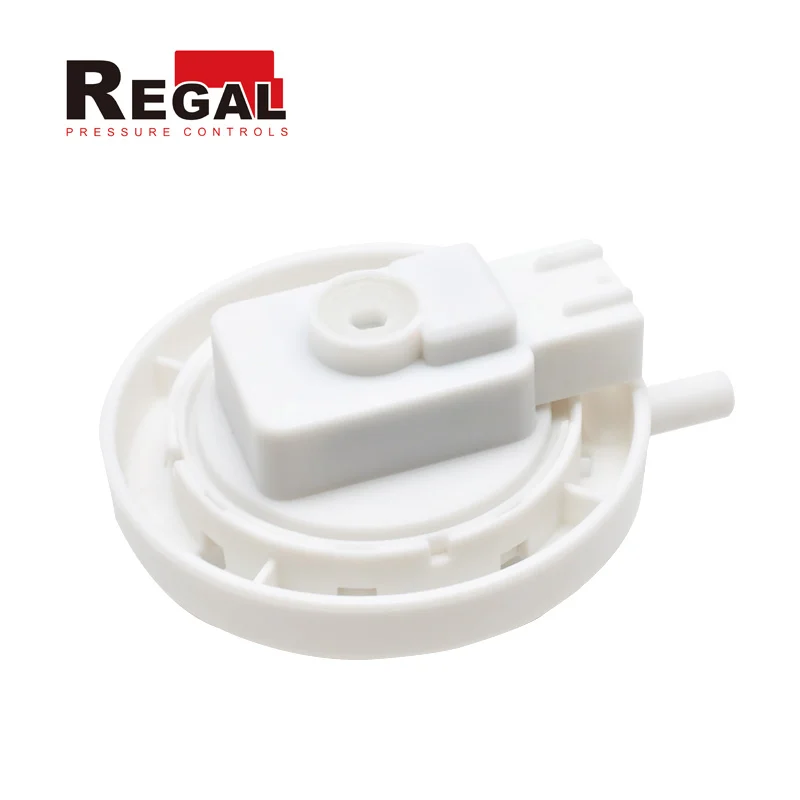

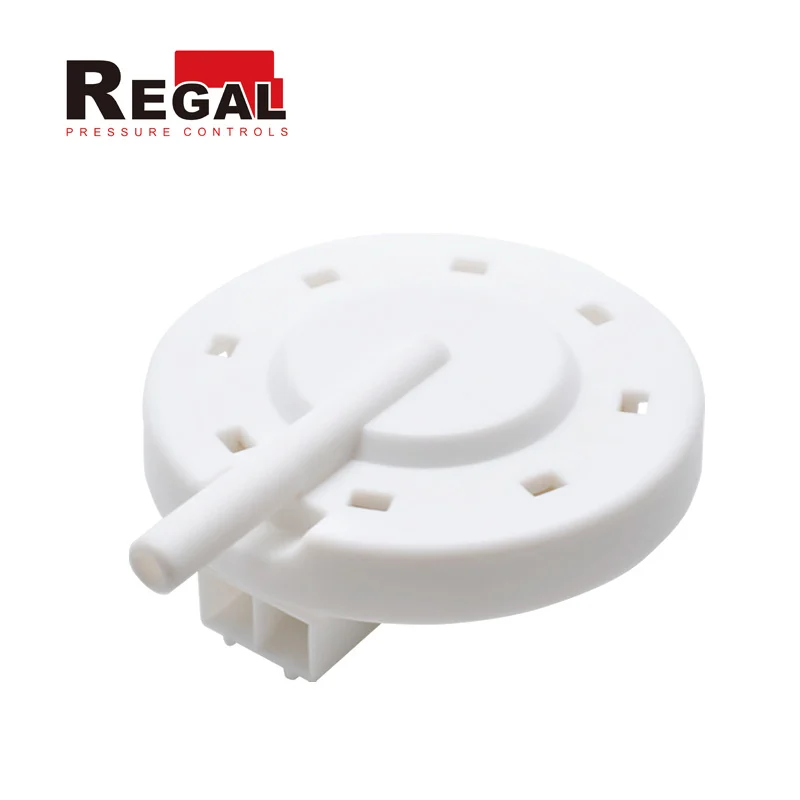

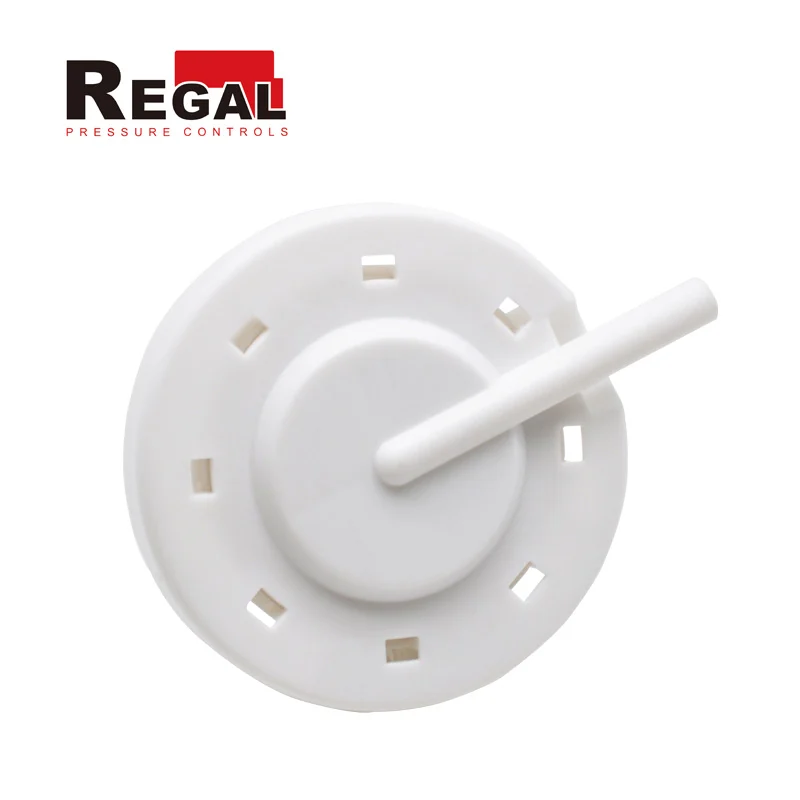

Washing Machine Pressure Switch Sensor Multi Water-Level

The C2-B washing machine pressure switch sensor can control more than one water level simultaneously, which is suitable for all kinds of washers. And as an experienced manufacturer, we can provide the OEM and ODM service for you. Welcome to contact us for more details. Thank you.

Washing Machine Pressure Switch Sensor

Share This Page

The Washing Machine Pressure Switch Induction

The C2-B Water Level Sensor Application

The C2-B series washing machine pressure switch sensor is specially designed for applications that require tight tolerances over a wide temperature range. Whether in cold winter or hot summer, it can maintain a stable water level.

The product design is light and precise, and the installation and terminal connection sizes are suitable for all kinds of washing machines popular today. Customers can use it directly without any change in the installation size. Its typical applications include automatic pulsator washing machines, drum washing machines, and dishwashers used to detect water levels.

The C2-B Water Level Sensor Features

The C2-B washing machine pressure switch sensor can detect the water column range from 0 to 130mm, and the frequency is 42.3~39.6 (kHz). People can choose to detect more than one water level, so you can use it in the device with this requirement. Meanwhile, the operating life is 50,000 cycles at least, which is long enough to use the washing machine. For example, if you use the switch 2 times a day, the switch can work for more than 68 years.

For more pressure switches and sensors, please click the link to see them; thank you!

Washing Machine Pressure Switch Specification

Model Number C2-B Washer Water Level Sensor
Voltage DC5V±2%
Tolerance of water level Min. +/-5   mmWC, Standard+/-10 mmWC
Water level range/frequency 0~130mmWC / 42.3~39.6(kHz)
Allowed Pressure Max. 760 mmWC
Working Temperature 0~50°C (T50)
Ambient Humidity 95% relative humidity Max.
Allowed Current 72 mA Max.
Interface size Outer diameter: 5.5mm
Working medium Air
Installation direction The diaphragm is installed in a horizontal plane, and the pressure interface is below
Diaphragm Silicone
Shell Material PP+GF, UL94 V-2
Coil former PA66+GF, GWIT>650°C
Service Life 50000cyclses
