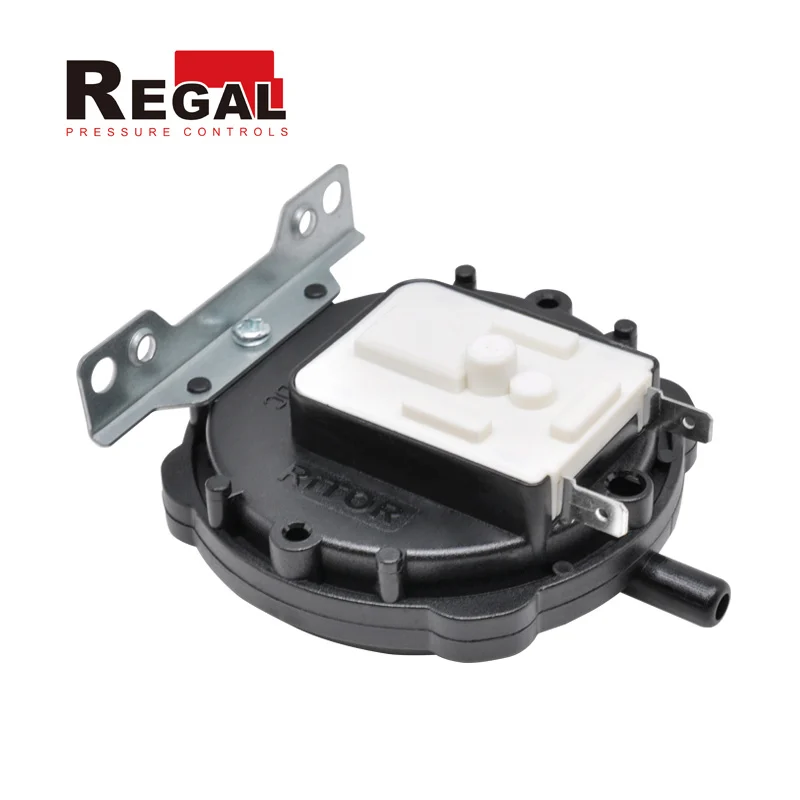

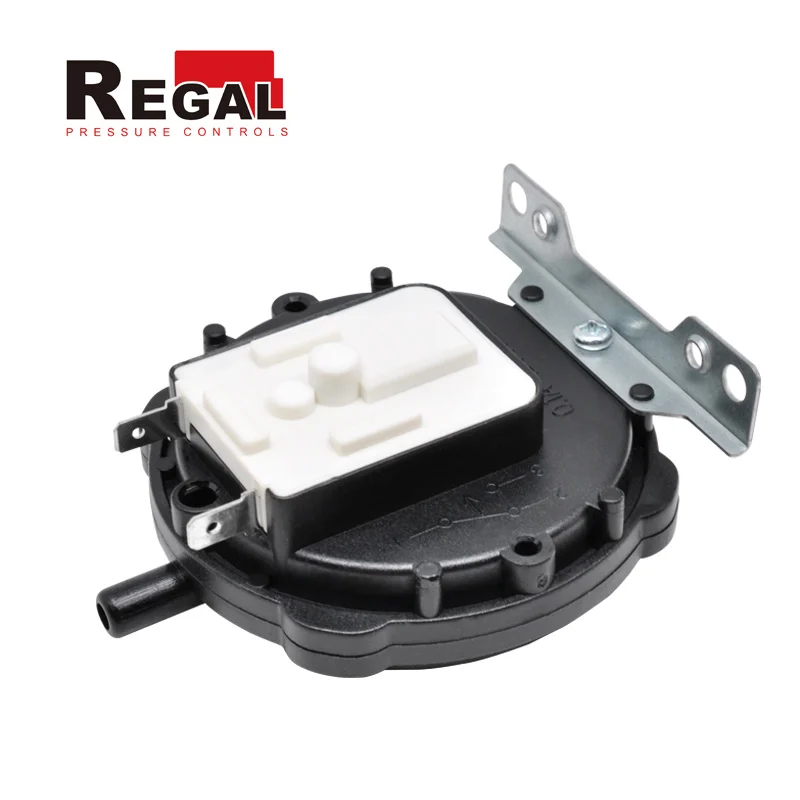

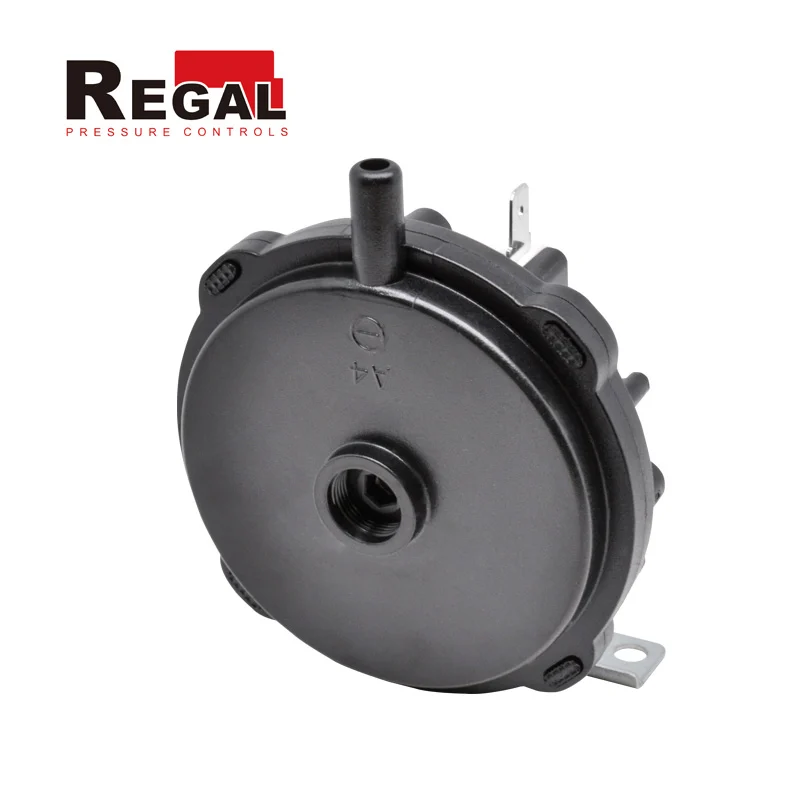

A401 Air Pressure Sensing Switch Differential Negative 20 ~ 150Pa

The A401 is an SPST NO air pressure sensing switch that can be used in the wall-hanging boiler furnace, gas water heater, HVAC system product, VAC system product, and so on.

A401 Air Pressure Switch

Share This Page

Air Pressure Sensing Switch Description

The A401 air pressure sensing switch is a single pole single throw normally open type switch with 2 forward terminals, which have 187#(4.8*0.5mm) and 250#(6.3*0.8mm) for your options. Kindly remind that the size of the terminals and direction is for the application to connect easily, if you have another requirement please feel free to contact us or visit our air pressure switch page to check.

Because of the patented design of the A4 series, we can control the pressure switch in a very small differential force, which is 10Pa which is smaller than most of the pressure switches on the market.

This air pressure sensing switch is the negative type whose working pressure range is from 20pa to 150pa and its set ON and set OFF pressure is available for customization. Meanwhile, the positive pressure type is also available. Besides, it also has a wide working temperature range(-40 to 110 ℃) so that it can reduce the effect of weather.

Generally, the A401 air pressure sensing switch can be used in the wall-hanging boiler furnace, gas water heater, HVAC system product, VAC system product, and so on. What’s more, if you need the electrical type air pressure sensors, please visit our product page.

A4 Air Pressure Switch Size

A4 Air pressure switch size

A401 Air Pressure Sensing Switch Specification

Model Number A401 Air Pressure Sensing Switch
Working Medium Air or Tail gas
Terminal Types Standard 187 Quick Connect (4.8*0.5mm)
Tube Interface 6.3 outer diameter which is suitable for the 5mm inner diameter tube
Circuit SPST NO
Rating 1A  24VDC & 0.5A 125/250VAC
Withstand Voltage 3000Pa(0.5Psi)
Electrical Life 25000000 cycles
Gas recovery outlet Negative
Working Temperature -40 to +110℃
