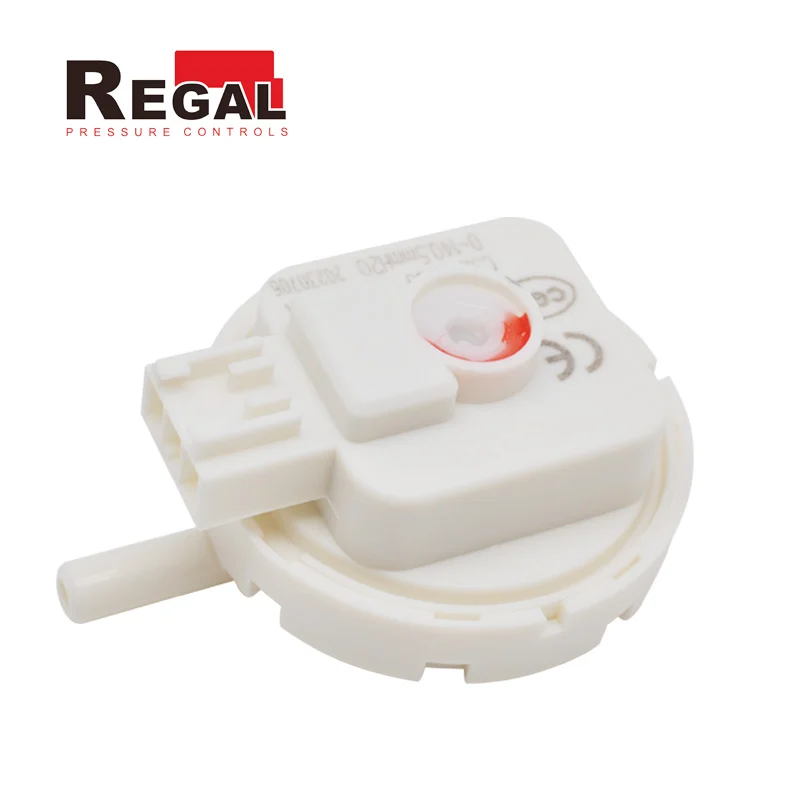

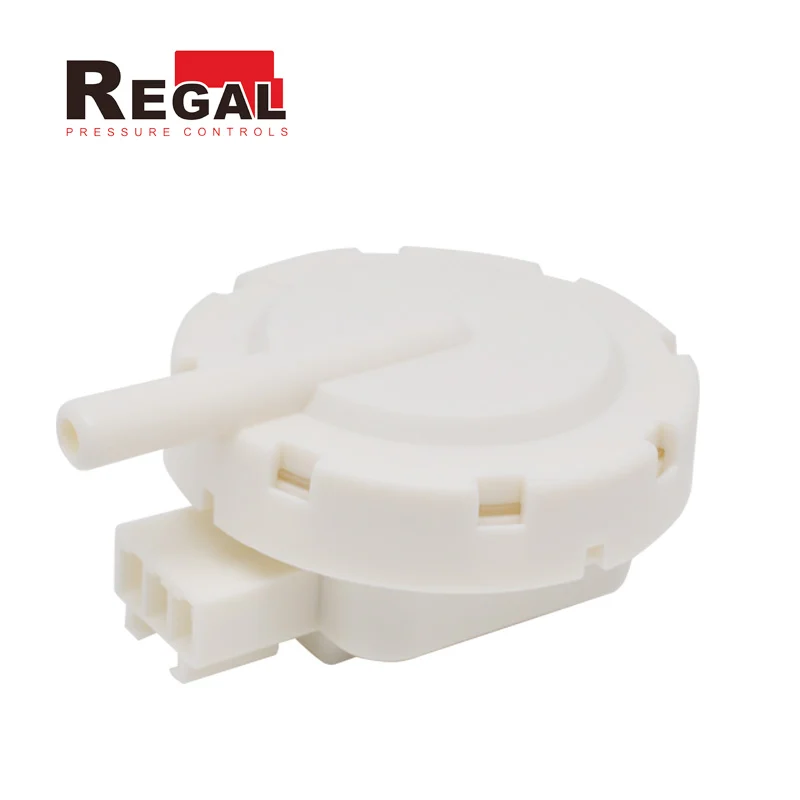

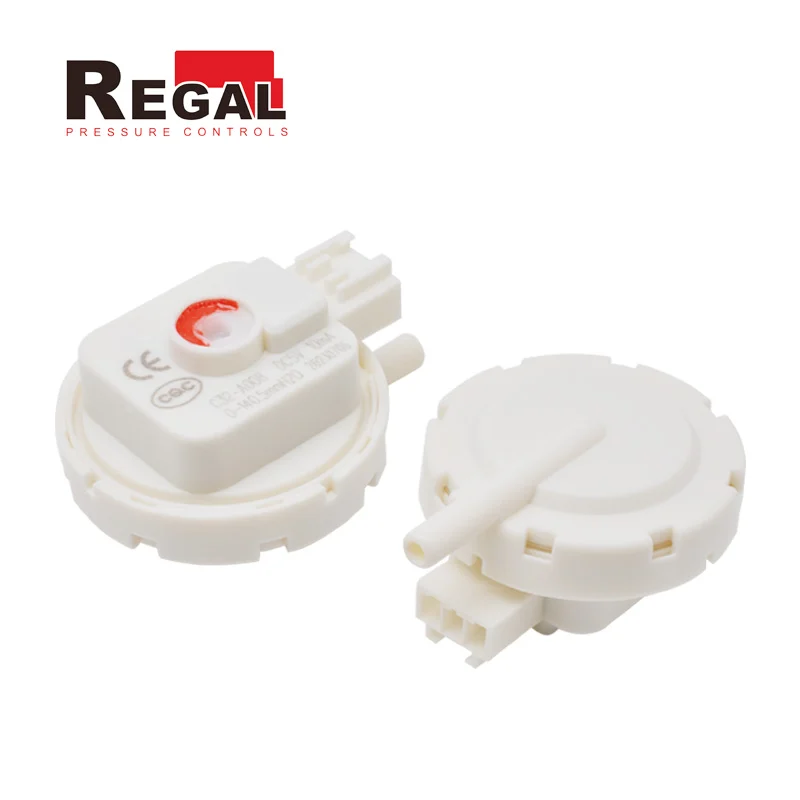

C32-A008 Solar water heater water level sensor control switch

The C32-A008 dishwasher water level sensor is designed with multiple water level accuracy tolerances, lightweight and precise design, large mounting size, and terminal connection size suitable for today’s popular.

Share This Page

C32-A008 Solar Water Heater Water Level Sensor Features

Solar water heater water level sensors are designed with multiple water level precision tolerances to maintain a stable water level in cold winter or hot summer. Product design lightweight precision, mounting size, and terminal connection size suitable for today’s popular.

What’s more, as a professional manufacturer of pressure & flow products, our water level switch, water level sensor, flow sensor, etc are suitable for washing machines, dishwashers, gas boilers, and water heaters. Please click the link to see more.

C32-A008 Water Level Sensor Specification

Model Number	C32-A008 Water Level Pressure Sensor
Voltage	DC5V±2%
Tolerance of water level	Min. +/-5 mmWC, Standard+/-10 mmWC
Water level range/frequency	0~325 mmWC / 26~21.4 (kHz)
Allowed Pressure	Max. 760 mmWC
Working Temperature	0~50°C (T50)
Ambient Humidity	95% relative humidity Max.
Allowed Current	72 mA Max.
Interface size	Outer diameter: 5.5mm
Working medium	Air
Installation direction	The diaphragm is installed in a horizontal plane, and the pressure interface is below
Diaphragm	Silicone
Shell Material	PP+GF, UL94 V-2
Coil former	PA66+GF, GWIT>650°C
Service Life	50000cyclses
