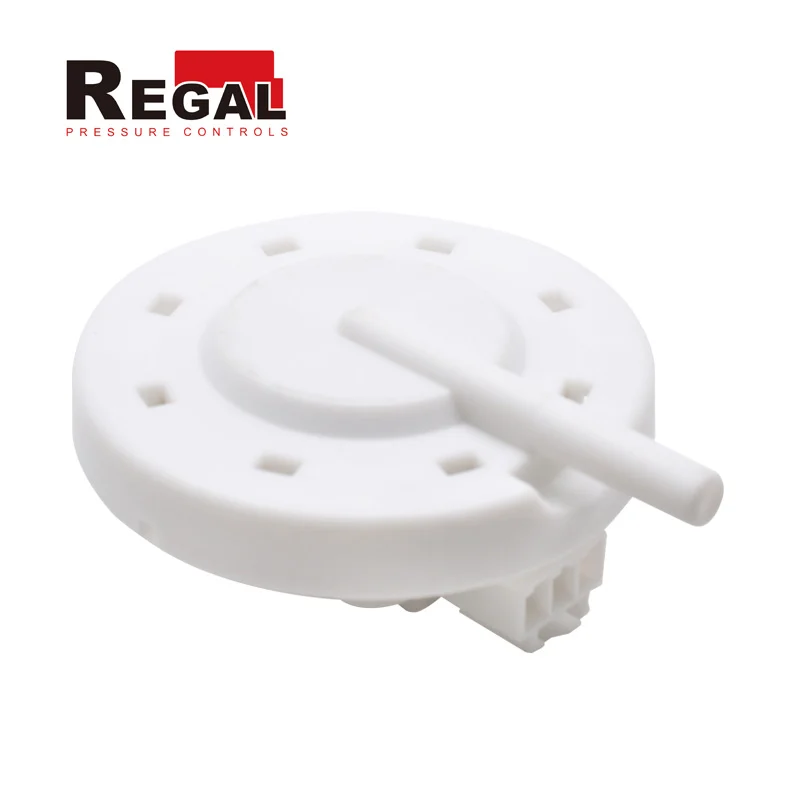

Water level sensor connected to washing machine 5VDC (2)

Water level sensor connected to washing machine 5VDC

The water level signal sensed by the water level sensor is transmitted to the controller, and the computer in the controller compares the measured water level signal with the set signal.

Share This Page

C32-B Water level sensor connected Features

The water level sensor acts as a pressure switch. When you set a pressure value, water is injected to produce water pressure, and when the pressure value is reached, electricity is automatically applied. Reach the switch function washing machine water level switch is divided into electronic (adjustable resistance) and switch type two.

The water level signal sensed by the water level sensor is transmitted to the controller, and the computer in the controller compares the measured water level signal with the set signal. What’s more, as a professional manufacturer of pressure & flow products, our water level switch, water level sensor, flow sensor, etc are suitable for washing machines, dishwashers, gas boilers, and water heaters. Please click the link to see more.

C32-B Water Level Pressure Sensor Specification

Model Number	C32-B Water Level Pressure Sensor
Voltage	DC5V±2%
Tolerance of water level	Min. +/-5 mmWC, Standard+/-10 mmWC
Water level range/frequency	0~325 mmWC / 26~21.4 (kHz)
Allowed Pressure	Max. 760 mmWC
Working Temperature	0~50°C (T50)
Ambient Humidity	95% relative humidity Max.
Allowed Current	72 mA Max.
Interface size	Outer diameter: 5.5mm
Working medium	Air
Installation direction	The diaphragm is installed in a horizontal plane, and the pressure interface is below
Diaphragm	Silicone
Shell Material	PP+GF, UL94 V-2
Coil former	PA66+GF, GWIT>650°C
Service Life	50000cyclses
