Dishwasher Water Level Sensor ambient temperature is 0°C to 50°C

The C32-A dishwasher water level sensor is designed with multiple water level accuracy tolerances, lightweight and precise design, large mounting size, and terminal connection size suitable for today’s popular.

Share This Page

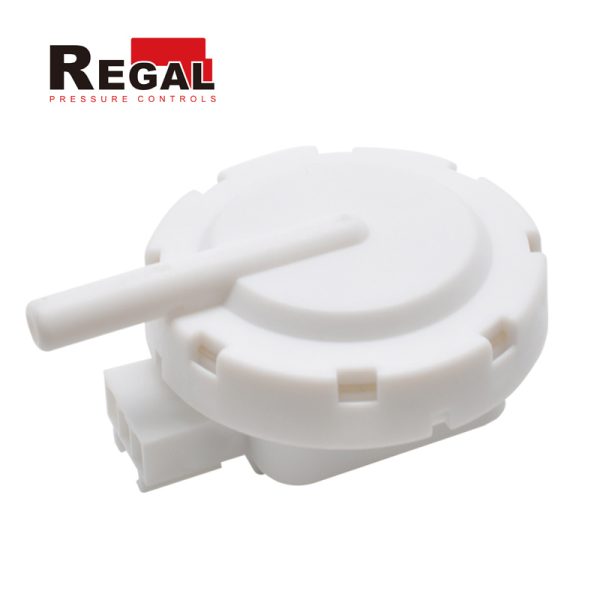

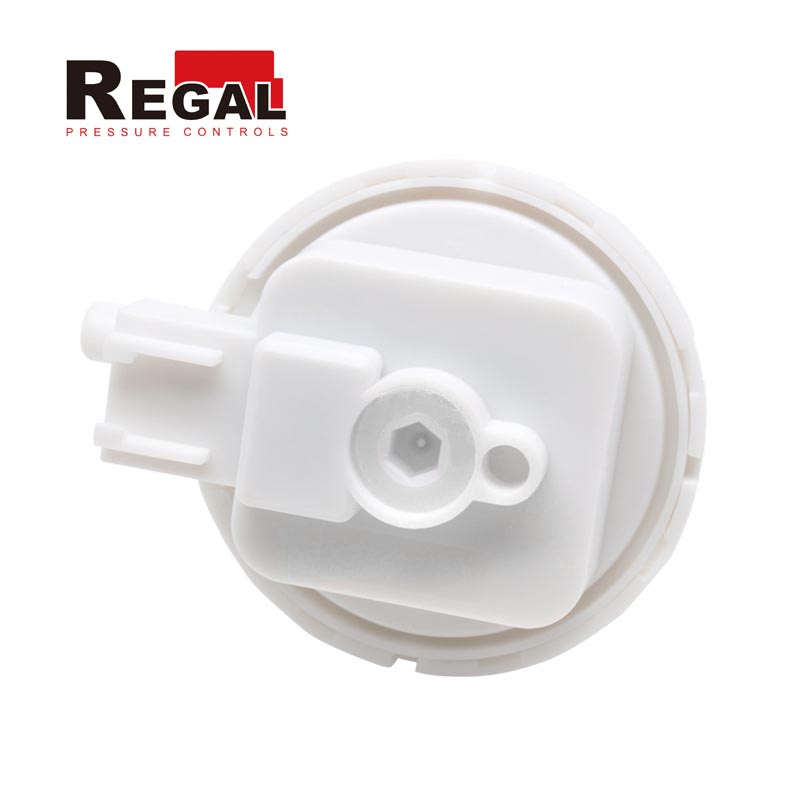

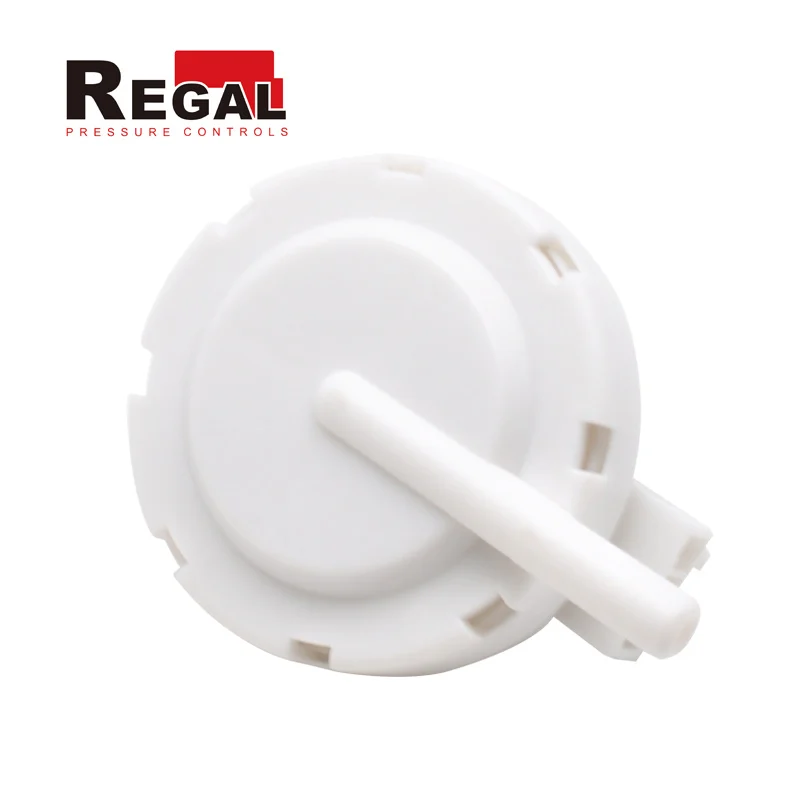

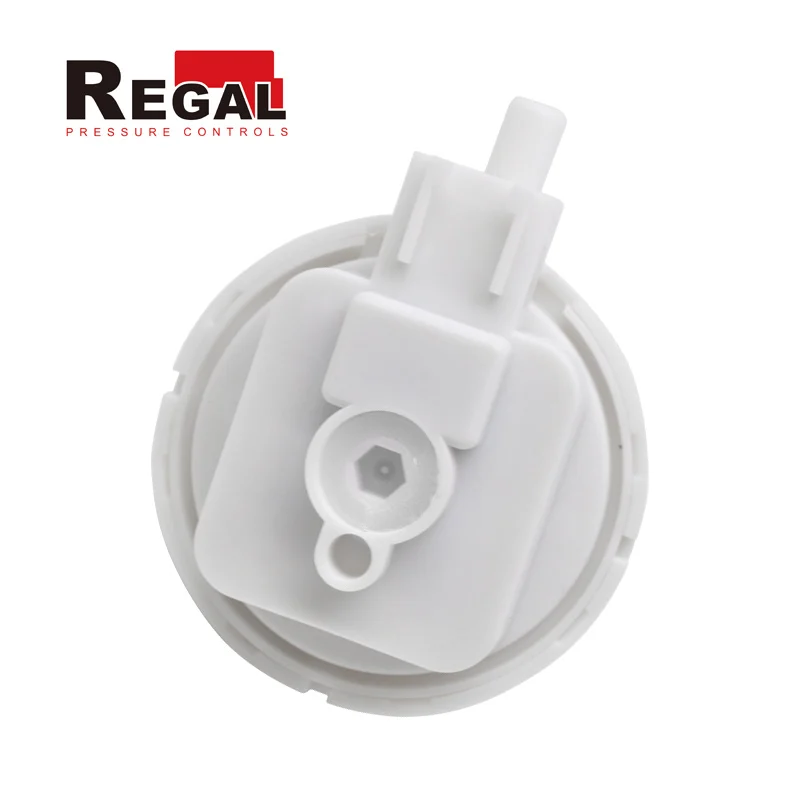

C32-A Dishwasher Water Level Sensor Features

Dishwasher water level sensors are designed with multiple water level precision tolerances to maintain a stable water level in cold winter or hot summer. Product design lightweight precision, mounting size, and terminal connection size suitable for today’s popular.

What’s more, as a professional manufacturer of pressure & flow products, our water level switch, water level sensor, flow sensor, etc are suitable for washing machines, dishwashers, gas boilers, and water heaters. Please click the link to see more.

C32 A Characteristic

C32-A Water Level Pressure Sensor Specification

Model Number C32-A Water Level Pressure Sensor
Voltage DC5V±2%
Tolerance of water level Min. +/-5   mmWC, Standard+/-10 mmWC
Water level range/frequency 0~325 mmWC / 26~21.4 (kHz)
Allowed Pressure Max. 760   mmWC
Working Temperature 0~50°C (T50)
Ambient Humidity 95% relative humidity Max.
Allowed Current 72 mA Max.
Interface size Outer diameter: 5.5mm
Working medium Air
Installation direction The diaphragm is installed in a horizontal plane, and the pressure interface is below
Diaphragm Silicone
Shell Material PP+GF, UL94 V-2
Coil former PA66+GF, GWIT>650°C
Service Life 50000cyclses
