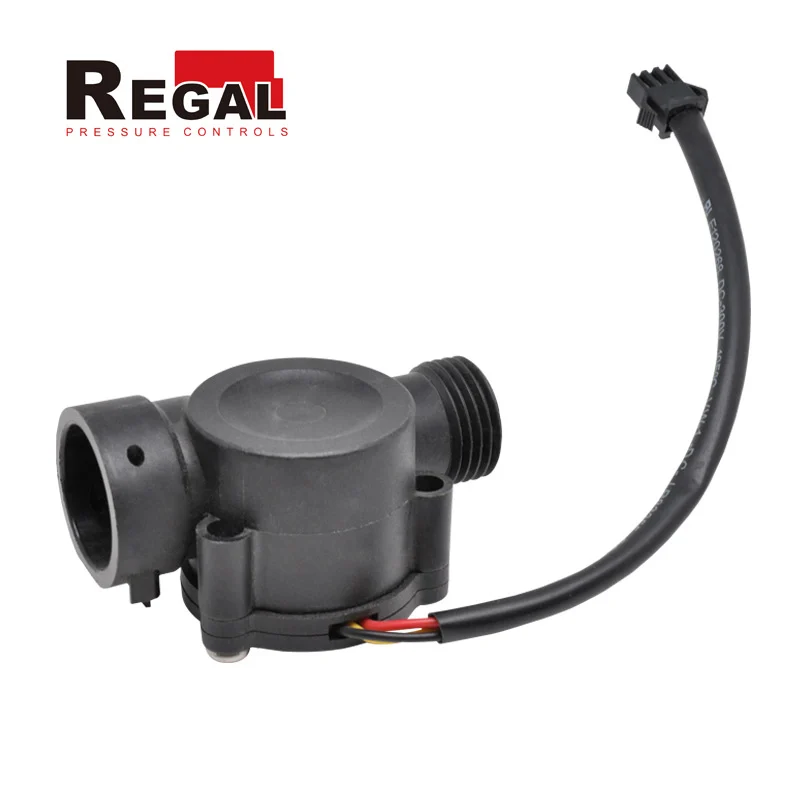

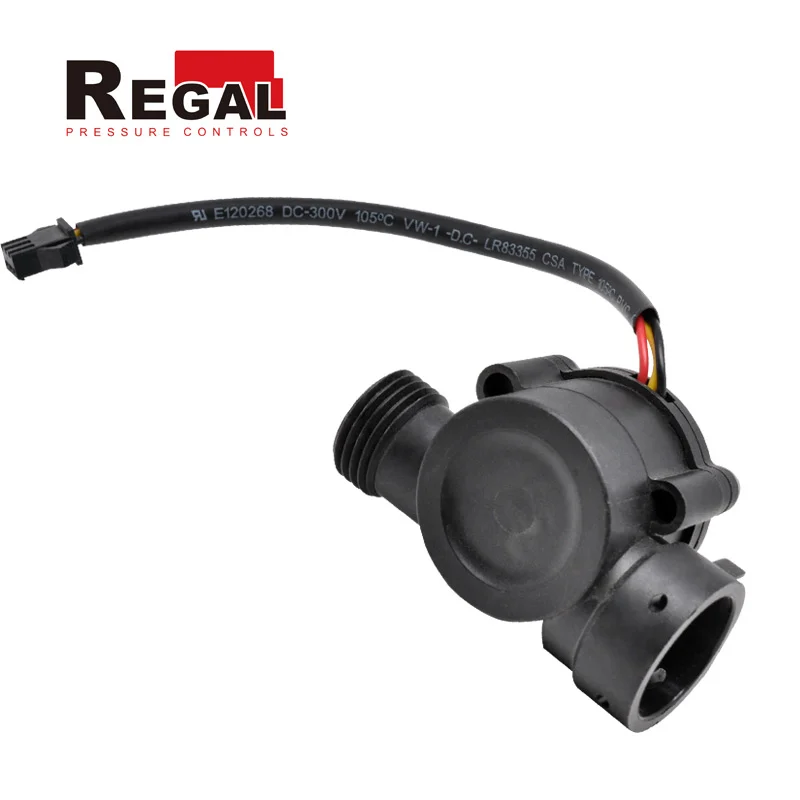

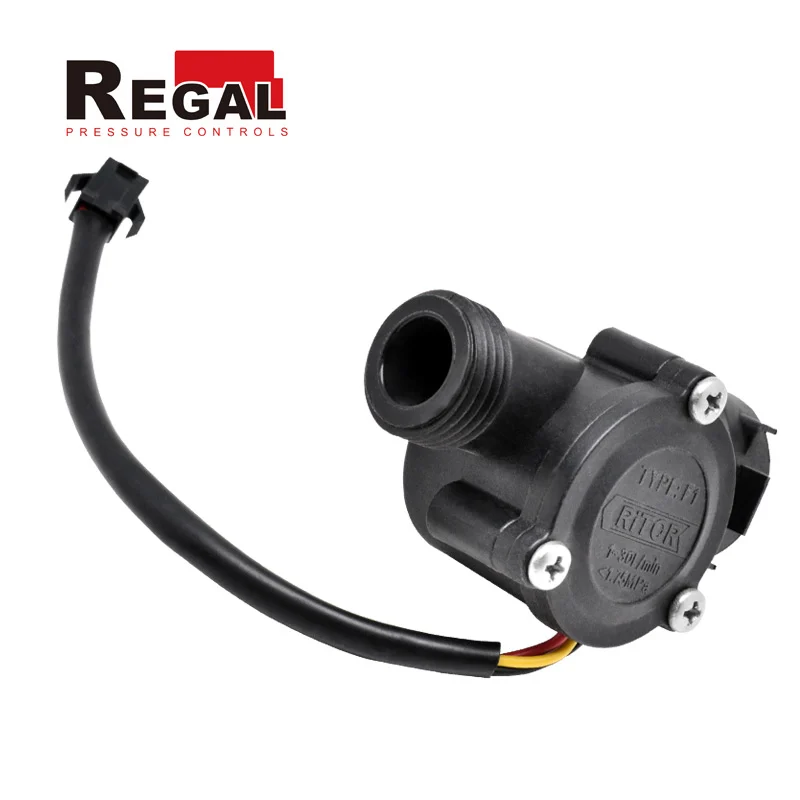

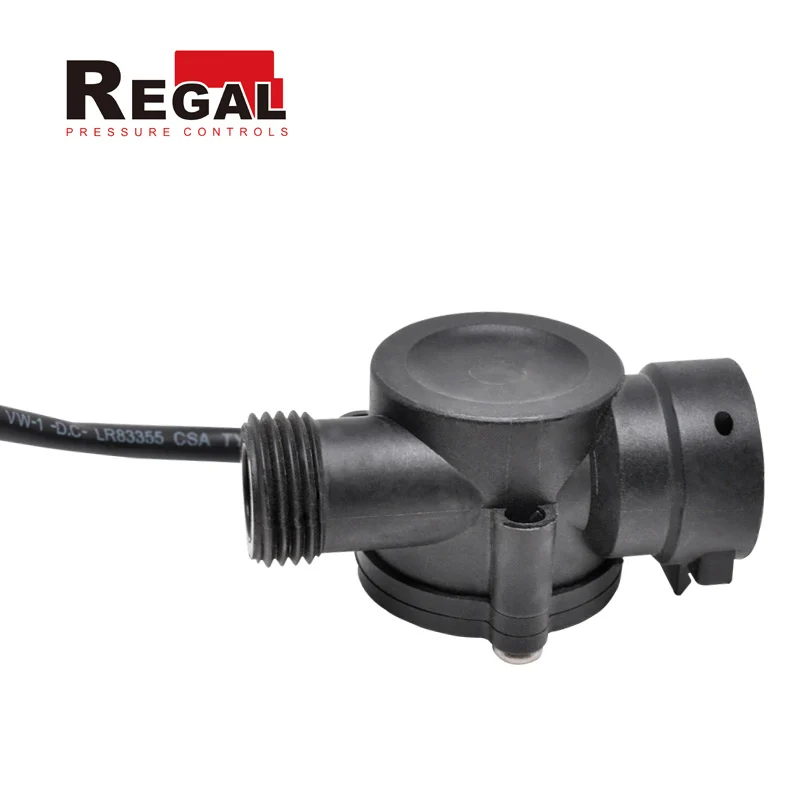

F12 Hall Effect Water Flow Sensor 5 VDC G1/4 & Quickly Connect

The F12 hall effect water flow sensor is a device that can detect the water flow rate and translate it into SWFM, which is worked with the hall sensor. The sample is available to test before ordering.

Share This Page

F12 Hall Effect Water Flow Sensor Description

  • The F12 hall effect water flow sensor has 1 piece of G1/4 screwed connector and 1 piece of quickly contact connector, which can be used in boilers, water heaters, hanging furnaces, water dispensers, drinking fountains, and so on. The F12 flow sensor belongs to the REGAL F1 series which is one of our own research and development products. It is high-quality and has high-dielectric strength, which an accuracy is +/-10%.
  • The working medium for the F1 series is liquid and its working temperature is from -15 to 85℃. So, as long as the liquid is not frozen our flow sensor will work well. Meanwhile, the F12 hall effect water flow sensor will work with the hall sensor and translate the swirl vane rotational speed into the square wave frequency (SWFM) so that we can read the SWFM to know the water flow rate.
  • Besides, the F12 also has many good performances. Firstly, you can get a high-precision flow sensor at a competitive price. Welcome to contact us to get the quotation. Secondly, it also has good electromagnetic compatibility. Thirdly, this hall effect water flow sensor has a working environment and very low-pressure loss. Fourthly, the impeller surface will not easy to adsorb the dust so the user doesn’t need to clean it often.
  • All in all, the F flow sensor has good performance in water flow detection. If you need to know more about different types of flow sensors, please click the link to check. Generally, the water heaters & boilers not only need the flow sensor switches but also need the air pressure switches and relief valves as well, which are also available from REGAL.



F12 Hall Effect Water Flow Sensor Specification

Model Number F12 Hall Effect Water Flow Sensor
Terminal Type 3-pin standard connector & wire (standard 150mm  and it also can be customizable)
Interface type 1*G1/2 & 1*quickly contact connector
Operating flow interval 1 L/Min to 30 L/Min
Dielectric Strength 500VAC(<3mA)
Operating Voltage DC 4.75V to DC 5.25V
Operating Current 15mA

Low Output Duty Cycle

50%
Overload Pressure 12Bar (@40℃)
Working Temperature -15 to 85℃
Service life with loading 200000 cycles
Protection Level IP20
